Description

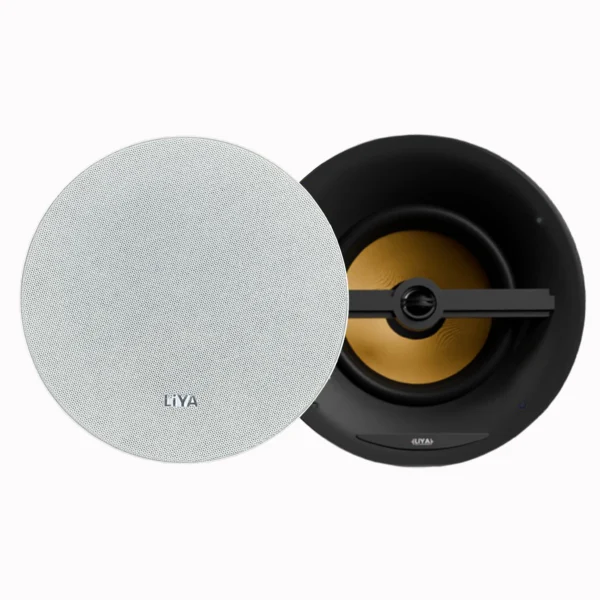

LiYA CS80: The Ultimate 8-Inch High-Performance In-Ceiling Speaker
When your audio project requires more power and deeper bass, the LiYA CS80 stands as the definitive choice. Engineered for larger architectural spaces and dedicated home theaters, the LiYA CS80 bridges the gap between discrete “invisible” audio and traditional high-output floorstanding speakers. It is designed for those who want a grand soundstage without sacrificing floor space.
|
SPECIFICATIONS |
|
|
Speaker Type |
Hi-Fi In-Ceiling Speaker |
|
Woofer |
8″ Kevlar Cone |
|
Tweeter |
1″ Silk Dome |
|
Frequency Response |
52 Hz – 20 kHz |
|
Power Handling |
30 – 120 Watts |
|
Impedance |
8 Ohms |
|
Sensitivity (1w/1m) |
90 dB |
|
Dimensions |
275 x 120 mm |
|
Cutout Size |
258 mm |
|
Grill Type |
Magnetic grill included |
Powerful 8″ Kevlar Driver Technology
The heart of the CS80 is its oversized 8″ Kevlar cone woofer. This large-diameter driver allows the speaker to move more air, reaching down to a powerful 52 Hz for bass that is punchy, tight, and resonant. Paired with a 1″ silk dome tweeter, the CS80 ensures that high frequencies remain smooth and crystal clear for a perfectly balanced Hi-Fi experience.
High Output Capability of the LiYA CS80 for Large Rooms
The LiYA CS80 is built for performance. While standard ceiling speakers might struggle in open-concept living areas or high-ceiling rooms, it handles up to 120 watts of power with ease. With a high sensitivity of 90 dB, this speaker converts power into clean, loud audio efficiently, making it compatible with a wide range of premium home theater receivers and amplifiers.
Technical Specifications of the LiYA CS80 In-Ceiling Speaker
-
Driver Configuration: 8″ Kevlar Woofer + 1″ Silk Dome Tweeter.
-

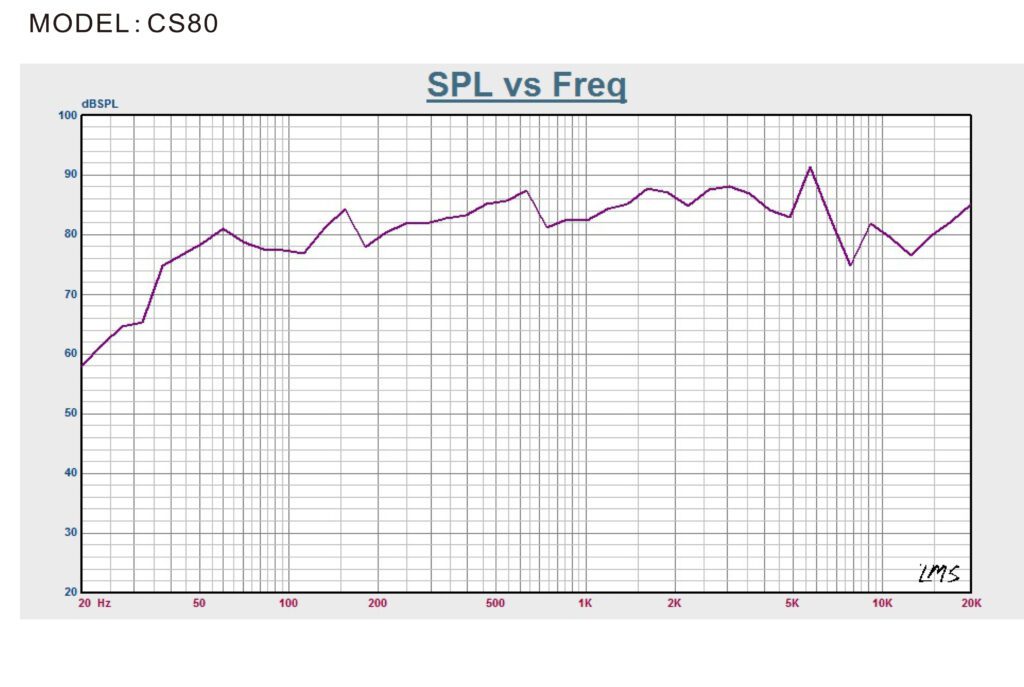

Extended Frequency Range: 52 Hz – 20 kHz for full-spectrum sound.
-
Impedance: 8 Ohms, optimized for multi-room audio stability.
-
Acoustic Design: High-grade crossover for seamless driver integration.
Seamless Integration with Paintable Magnetic Grill
Despite its powerful hardware, the LiYA CS80 maintains a clean, professional aesthetic. It includes a bezel-free magnetic grill that sits completely flush against the ceiling. The grill is fully paintable, allowing the LiYA CS80 to blend perfectly into your interior design. Installation is straightforward using the heavy-duty clamp system, requiring a 258mm cutout for a secure, vibration-free fit.

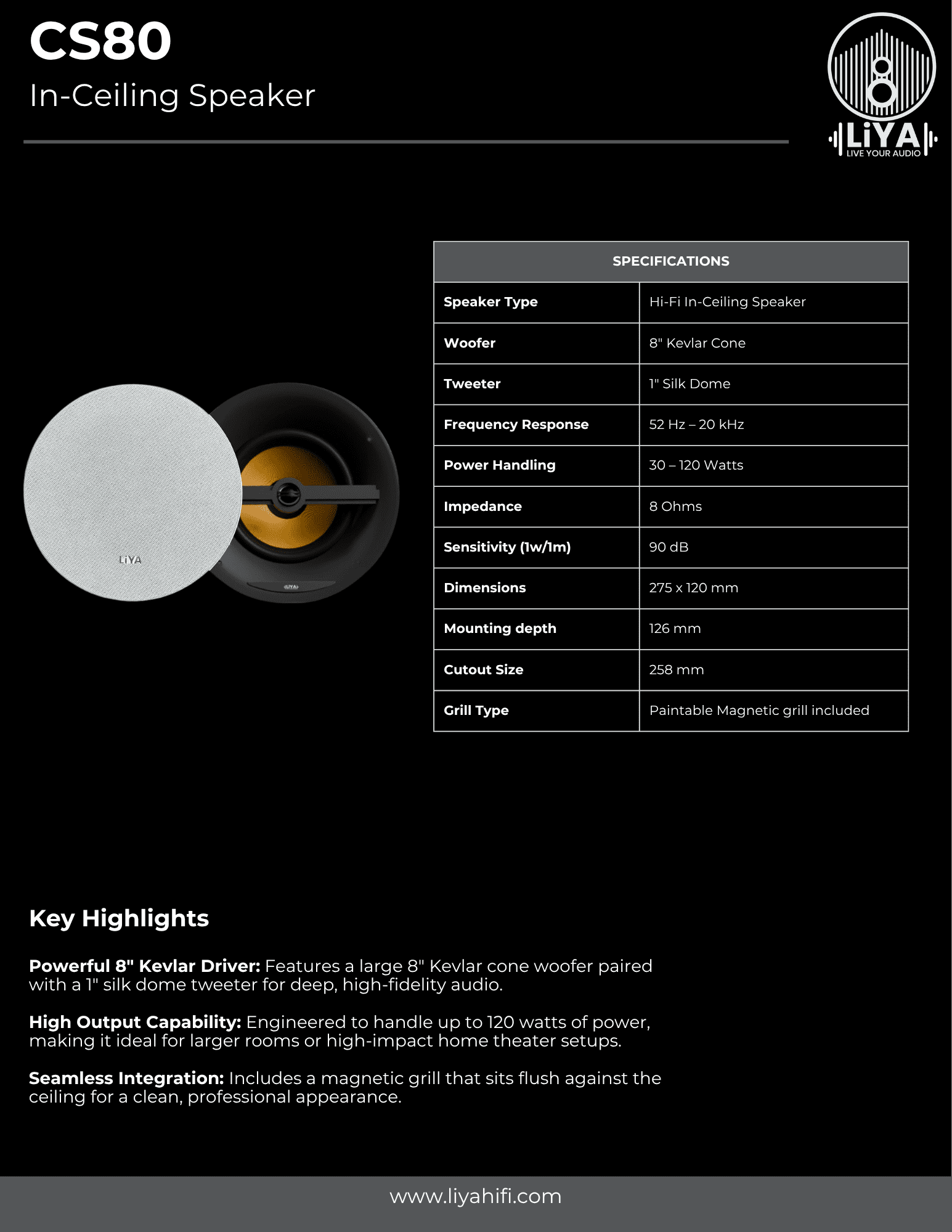

Spec Sheet
For more technical detail, View the Spec Sheet here: Spec Sheet .
