Description

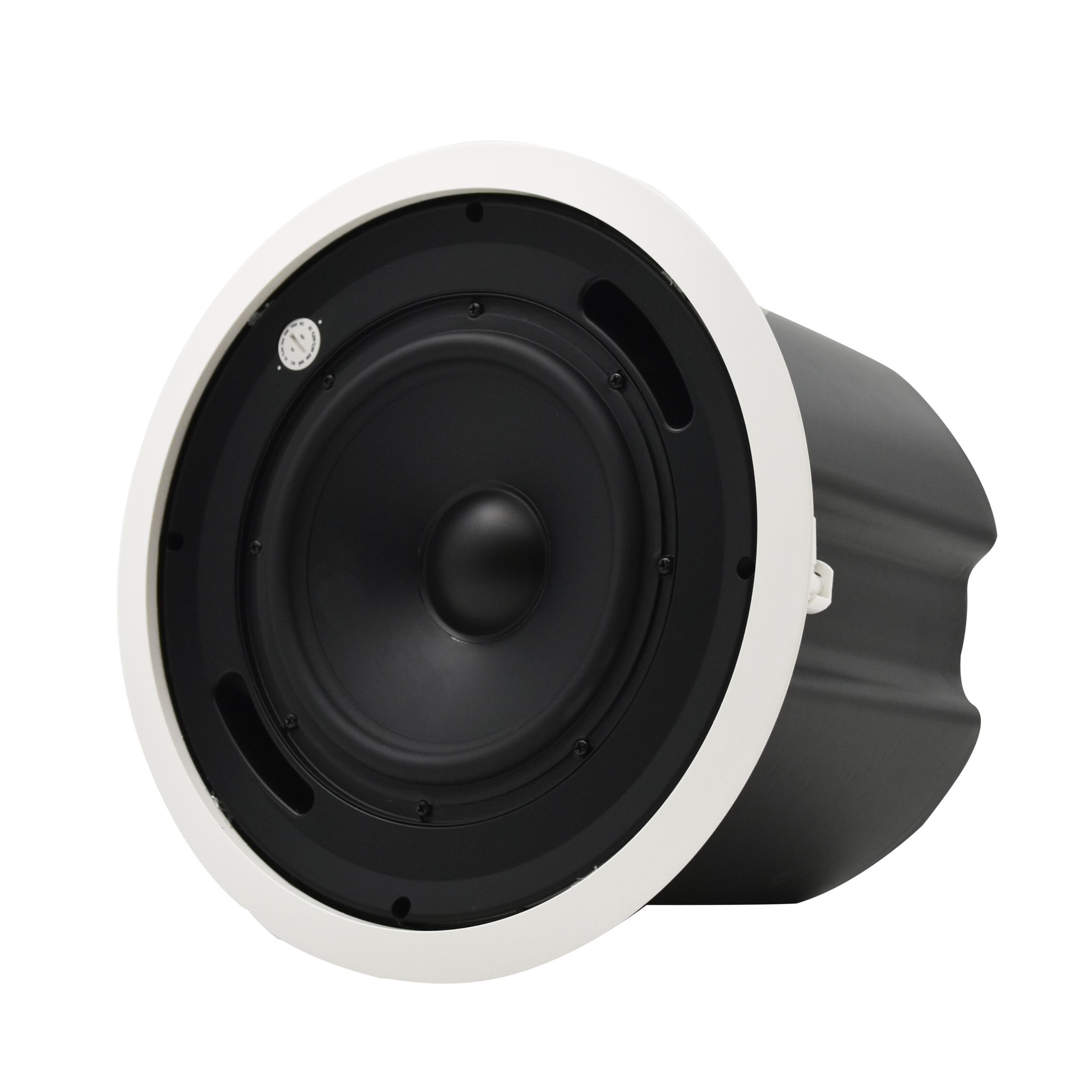

Bring deeper and more immersive bass to your audio system with the LiYA SUB-I8 In-Ceiling Subwoofer. This 8-inch passive subwoofer is designed for discreet installation in ceilings while delivering focused low-frequency performance.
The SUB-I8 combines an 8-inch paper cone woofer with a rubber surround. It offers a frequency range of 45Hz to 250Hz, making it ideal for adding depth and warmth to music and home theater audio.
Moreover, its multiple power taps provide flexible installation options. The paintable magnetic grill also allows the speaker to blend naturally with your ceiling.
|
SPECIFICATIONS |
|
|
Speaker Type |
Hi-Fi In-Ceiling Passive Subwoofer |
|
Woofer |
8″ (203 mm) Paper Cone, Rubber Surround |
|
Frequency Range (+/- 3dB) |
45 Hz – 250 Hz |
|
Power Handling (RMS) |
120 W (program), 100 W (IEEE 219) |
|
Taps |
100W, 50W, 25W, 12.5W |
|
Impedance |
8Ω |
|
Sensitivity |
87 dB |
|
Housing Material |
ABS + Iron |
|
Cut Out Diameter |
11.69″ (297 mm) |
|
Dimensions |
|
|
Mounting Depth |
280 mm |
|
Grill |
Paintable Magnetic grill included |
8-Inch Woofer for Focused Bass Performance
The LiYA SUB-I8 In-Ceiling Subwoofer features an 8-inch paper cone woofer. Its rubber surround supports controlled movement during low-frequency reproduction.
As a result, the speaker adds warmth and depth to your audio system. It is designed to complement a wider home audio or home theater setup.
Furthermore, the woofer works within a 45Hz–250Hz frequency range. This allows the SUB-I8 to focus on the bass and lower-midrange frequencies.
Hi-Fi In-Ceiling Design
Unlike conventional floor-standing subwoofers, the LiYA SUB-I8 is designed for in-ceiling installation. This approach keeps the speaker discreet while adding dedicated bass support to the room.
The in-ceiling design is especially useful for clean and minimal interior installations. Therefore, it can be integrated into living rooms, media rooms, home theaters, and other audio spaces.
When installed correctly, the SUB-I8 can provide additional low-frequency energy without taking up valuable floor space.
Flexible Power Taps for Easy Installation
The SUB-I8 includes multiple power tap options of 100W, 50W, 25W, and 12.5W. These settings provide flexibility when configuring the speaker for different audio systems.
As a result, installers can select a suitable power level for the installation. This makes the SUB-I8 adaptable to a range of compatible audio setups.
The speaker also features an 8Ω impedance, providing a standard option for compatible amplifier and audio system configurations.
Efficient 87dB Sensitivity
The LiYA SUB-I8 features a sensitivity rating of 87dB. This specification indicates the speaker’s acoustic output relative to its input power.
Combined with its 8-inch woofer, the SUB-I8 is designed to deliver useful bass output within its intended frequency range. Therefore, it can serve as a dedicated bass component within a larger Hi-Fi audio installation.
Durable ABS and Iron Housing
The SUB-I8 uses an ABS + iron housing for its construction. This combination provides a sturdy enclosure for an in-ceiling speaker.
Moreover, the housing is designed for discreet architectural installation. Its construction supports the speaker’s role in permanent home audio and custom installation projects.
The speaker’s 280mm mounting depth should also be considered during installation. Always check the available ceiling cavity before fitting the speaker.
Paintable Magnetic Grill for a Discreet Finish
The LiYA SUB-I8 In-Ceiling Subwoofer comes with a paintable magnetic grill. This allows the grill to be finished to better match the surrounding ceiling.
The magnetic attachment also supports a clean and streamlined appearance. As a result, the speaker can become less visually intrusive after installation.
This makes the SUB-I8 a practical choice for interiors where audio performance and aesthetics are equally important.
Designed for Home Audio and Home Theater
The LiYA SUB-I8 is designed to add dedicated bass support to compatible audio systems. Its in-ceiling format makes it especially useful for architectural audio installations.
For home theater systems, it can contribute additional low-frequency energy to the overall sound experience. Meanwhile, music systems can benefit from added bass depth and warmth.
Furthermore, its flexible power taps make system configuration easier. The discreet ceiling installation also helps maintain a clean interior without occupying floor space.
Ideal for Discreet Architectural Audio
The LiYA SUB-I8 In-Ceiling Subwoofer combines dedicated bass reproduction with a discreet architectural design. Its 8-inch paper cone woofer delivers focused low-frequency performance from within the ceiling.
With multiple power taps, 8Ω impedance, and a paintable magnetic grill, the SUB-I8 offers flexible installation options. It is therefore well suited to custom home audio, Hi-Fi, and home theater applications.
For listeners who want stronger bass without adding another floor-standing enclosure, the LiYA SUB-I8 provides a clean and practical solution.

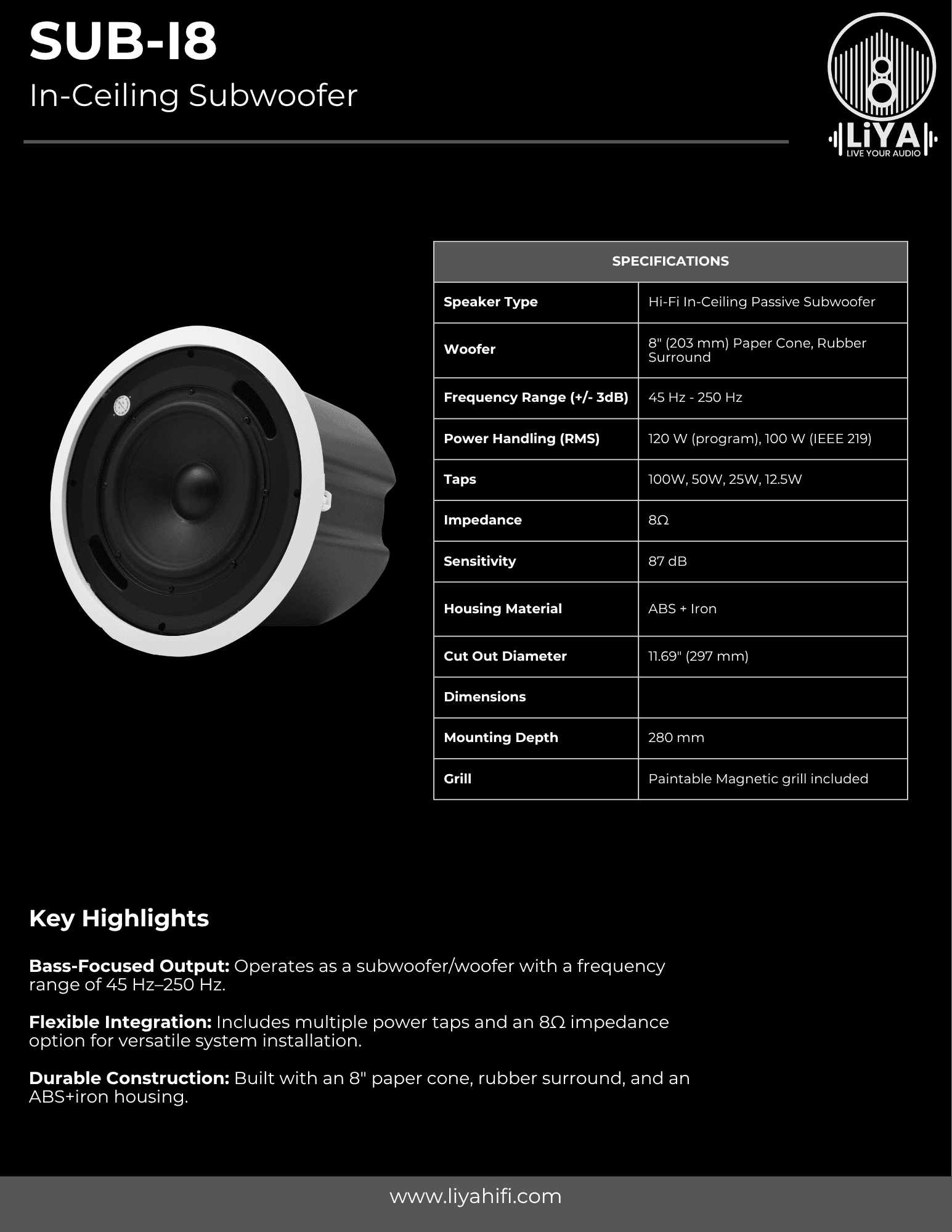

Spec Sheet
LiYA SUB-I8 Spec Sheet: Click here for full technical details
