Description

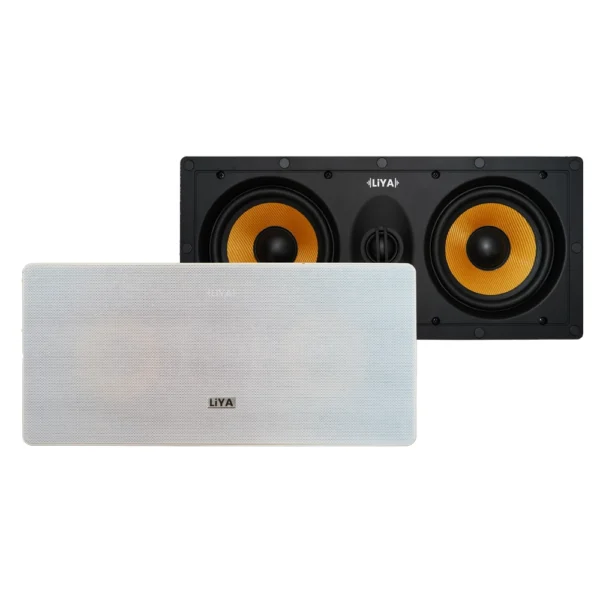

Cinematic Excellence with the LiYA LCR5 2-Way System
The LiYA LCR5 redefines the home cinema experience with its versatile in-wall 2-way speaker design. Engineered specifically for high-fidelity audio reproduction, the LiYA LCR5 utilizes a professional D’appolito configuration—placing the tweeter between two powerful woofers. This ensures a symmetrical radiation pattern, making the LiYA LCR5 the perfect choice to be used horizontally as a dedicated center channel or vertically for left and right channels.
|

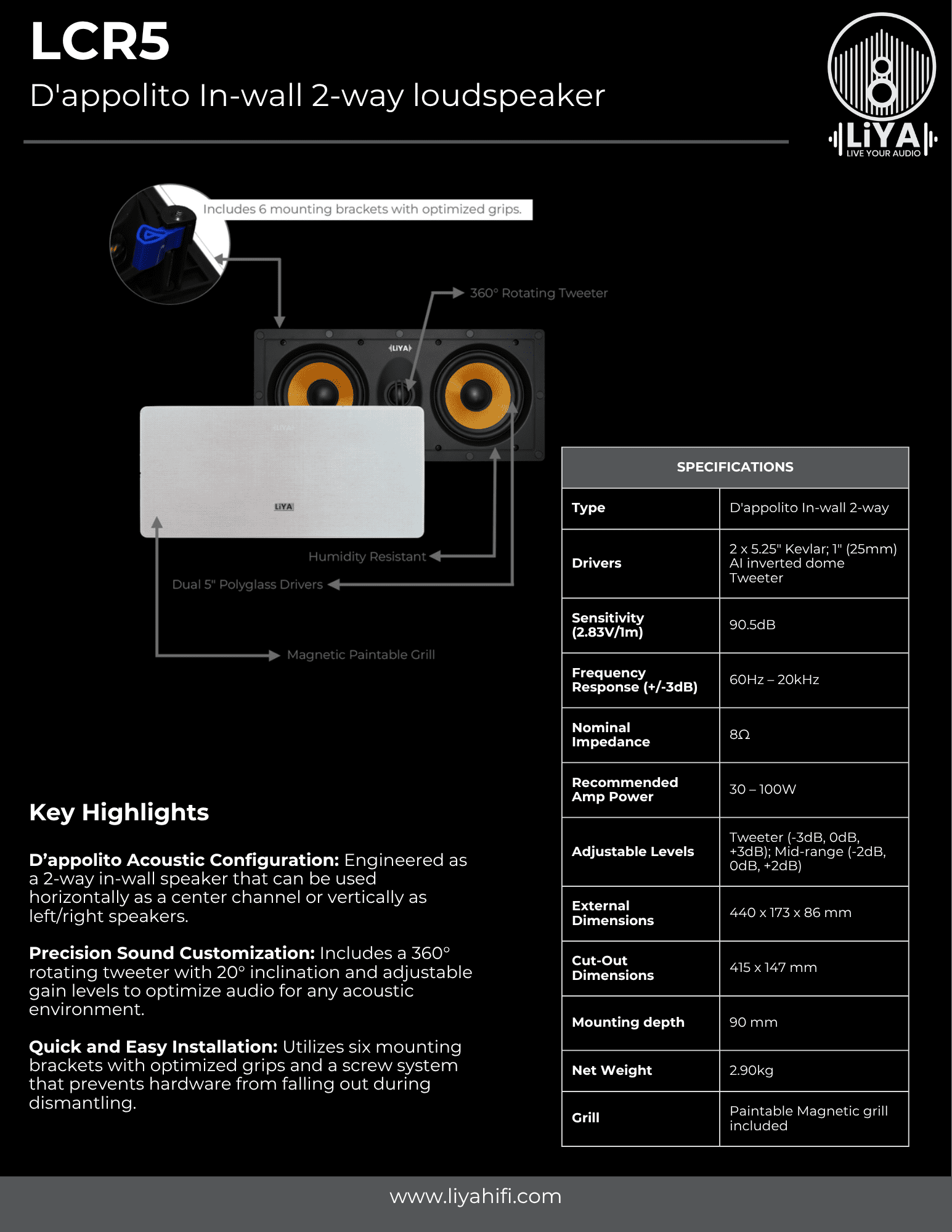

SPECIFICATIONS |
|
|
Type |
D’appolito In-wall 2-way |
|
Drivers |
2 x 5.25″ Kevlar; 1″ (25mm) AI inverted dome Tweeter |
|
Sensitivity (2.83V/1m) |
90.5dB |
|
Frequency Response (+/-3dB) |
60Hz – 20kHz |
|
Nominal Impedance |
8Ω |
|
Recommended Amp Power |
30 – 100W |
|
Adjustable Levels |
Tweeter (-3dB, 0dB, +3dB); Mid-range (-2dB, 0dB, +2dB) |
|
External Dimensions |
440 x 173 x 86 mm |
|
Cut-Out Dimensions |
415 x 147 mm |
|
Net Weight |
2.90kg |
Precision Engineering: Kevlar & AI Inverted Dome
At the core of the LCR5 are dual 5.25″ Kevlar woofers, designed for high rigidity and minimal distortion. These are paired with a 1″ (25mm) AI inverted dome tweeter, providing a wider soundstage and exceptional detail. Because every room is acoustically different, the LiYA LCR5 features a 360° rotating tweeter with a 20° inclination, allowing you to aim high frequencies directly at the listening position.
Customizable Acoustic Levels
Unlike a standard in-wall speaker, the LCR5 gives you total control over your sound. The integrated crossover allows for Adjustable Gain Levels, letting you fine-tune the output to match your room’s specific acoustics:
-
Tweeter Control: Adjust the LCR5 high-end between -3dB, 0dB, or +3dB.
-
Mid-range Control: Fine-tune the mids between -2dB, 0dB, or +2dB.
Why Choose the LiYA LCR5 for Your Home Theater?
-
High Sensitivity: A 90.5dB rating ensures the LCR5 delivers efficient, powerful performance even with modest amplification.
-
Slim Profile: With a mounting depth of only 86mm, the LCR5 fits perfectly into standard wall cavities.
-
Flexible Placement: Use the LCR5 as a Left, Center, or Right channel (LCR) for a perfectly timber-matched soundstage.
Quick and Professional Installation of LiYA LCR5
The LCR5 is built for a seamless, secure fit. This speaker utilizes six heavy-duty mounting brackets with optimized grips. The innovative screw system is designed to stay in place, preventing hardware from falling out during installation. Achieving a flush-mount, architectural look with the LCR5 has never been easier.
